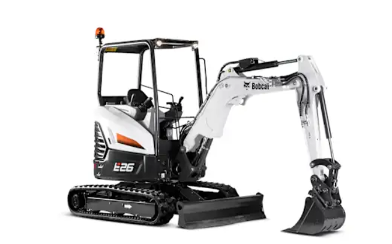

E26 Mini Excavator
The latest version of the popular Bobcat E26 compact excavator (mini excavator) combines user-friendly operation with robust performance, specifically designed to meet the unique demands of the rental industry. This updated model enhances operator comfort and introduces advanced features tailored for the most discerning owner-operators. The new E26 is 100 kg lighter for easier transport while offering improved over-the-side lifting capacity. To address common rental industry challenges and maximize uptime, the E26 now includes innovative enhancements like the Cylinder-Inside-Boom (CIB) workgroup and optimized geometry, providing extra protection against bucket collisions with the cab.
Key Specifications
Operating weight
2608 kg
Digging depth
2.6 m
Engine power
14.9 kW
Digging breakout force
15690 N
Tail swing type
RTS
Dimensions
Blade height
319.00 mm
Clearance, upper structure to ground line
539.00 mm
Ground line to top of engine cover
1540.00 mm
Length of track on ground
1543.00 mm
Machine centre line to blade
1462.00 mm
Minimum radius in travel position
3192.00 mm
Overall length of track assembly
1965.00 mm
Overall length in travel position
4174.00 mm
Track lug height
21.00 mm
Blade width
1500.00 mm
Height
2438.00 mm
Track width
250.00 mm
Machine centre line to working equipment centre line, left-hand rotation
580.00 mm
Machine centre line to working equipment centre line, right-hand rotation
705.00 mm
Minimum turning radius
1755.00 mm
Swing clearance, rear
820.00 mm
Working width at maximum right-hand rotation
1741.00 mm
Working width at maximum left-hand rotation
1616.00 mm
Weights
Operating weight with cab and bucket (ISO 6016)
2608.00 kg
Transport mass (no attachment)
2477.00 kg
Weight reduction with canopy
-118.00 kg
Ground pressure with rubber tracks
30.30 kPa
Working Range
Bucket pivot angle
185.00 °
Maximum reach of working equipment
4542.00 mm
Maximum reach at ground level
4413.00 mm
Maximum working equipment radius with boom at maximum height and dipperstick fully retracted
2052.00 mm
Maximum blade height
385.00 mm
Maximum blade depth
420.00 mm
Maximum height of working equipment with dipperstick retracted
3104.00 mm
Maximum bucket tooth height
4006.00 mm
Maximum dump height
2845.00 mm
Maximum depth of vertical wall which can be excavated
1474.00 mm
Maximum digging depth
2568.00 mm
Engine
Make / model
Yanmar / 3TNV76-PBC (Stage V)
Fuel
Diesel
Displacement
1116.00 cm3
Maximum power @ 2400 rpm (ISO 14396)
14.90 kW
Maximum torque @ 1800 rpm (SAE J1995)
66.30 Nm
