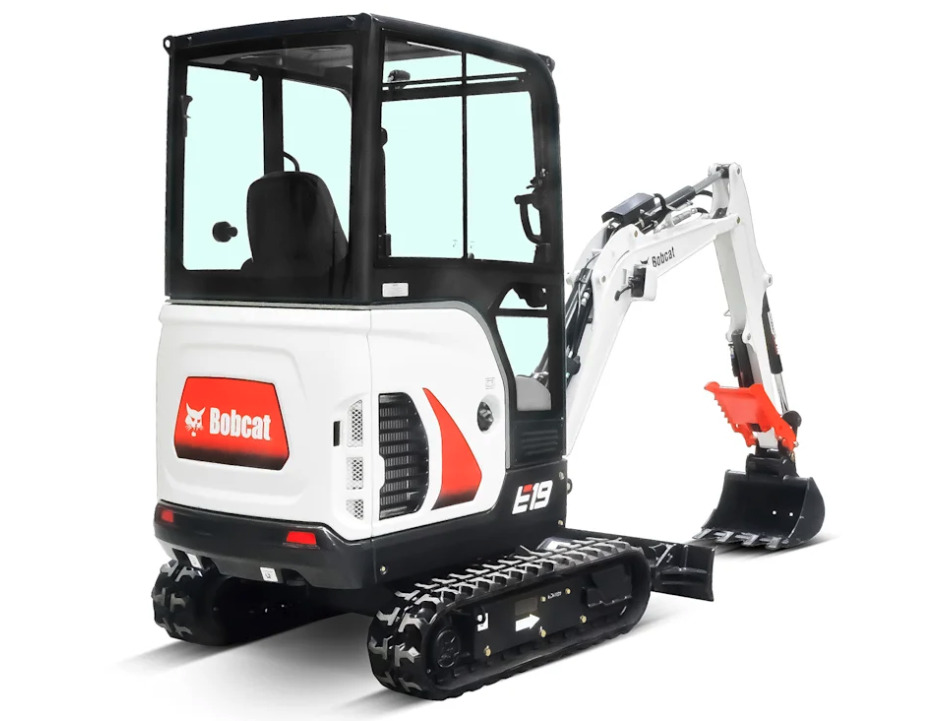

E19 Mini Excavator
The Bobcat E19 compact excavator (mini excavator) delivers outstanding performance in tight spaces while requiring minimal repositioning. Its undercarriage can be hydraulically adjusted, to easily pass through gates or tight gaps between walls and buildings
Key Specifications
Operating weight
1885 kg
Digging depth
2.4 m
Engine power
11 kW
Digging breakout force
10371 N
Tail swing type
CTS
Dimensions
Blade height
235.00 mm
Clearance, upper structure to ground line
419.00 mm
Ground line to top of engine cover
1340.00 mm
Length of track on ground
1114.00 mm
Machine centre line to blade
1045.00 mm
Minimum radius in travel position
2832.00 mm
Overall length of track assembly
1476.00 mm
Overall length in travel position
3831.00 mm
Overall length in travel position, long dipperstick
3812.00 mm
Track lug height
25.00 mm
Blade width
980.00 mm
Blade width (extensions extended)
1360.00 mm
Height
2299.00 mm
Track width
230.00 mm
Machine centre line to working equipment centre line, left-hand rotation
433.00 mm
Machine centre line to working equipment centre line, right-hand rotation
589.00 mm
Minimum turning radius
1154.00 mm
Swing clearance, rear
1009.00 mm
Working width at maximum right-hand rotation
1801.00 mm
Working width at maximum left-hand rotation
1645.00 mm
(* Dentoes values which long dipperstick installed)
Thu May 24 11:10:19 CEST 2018
Weights
Operating weight with cab and bucket (ISO 6016)
1885.00 kg
Transport mass (no attachment)
1768.00 kg
Weight reduction with canopy
-96.00 kg
Additional weight for long dipperstick
6.00 kg
Additional weight for long dozer blade
9.00 kg
Additional weight for counter weight
41.00 kg
Ground pressure with rubber tracks
32.40 kPa
Working Range
Bucket pivot angle
196.00 °
Maximum reach of working equipment
4084.00 mm
Maximum reach of working equipment, long dipperstick
4257.00 mm
Maximum reach at ground level
4039.00 mm
Maximum reach at ground level, long dipperstick
4214.00 mm
Maximum working equipment radius with boom at maximum height and dipperstick fully retracted
1542.00 mm
Maximum working equipment radius with boom at maximum height and dipperstick fully retracted, long dipperstick
1561.00 mm
Maximum blade height
220.00 mm
Maximum blade depth
204.00 mm
Maximum height of working equipment with dipperstick retracted
2564.00 mm
Maximum bucket tooth height
3573.00 mm
Maximum bucket tooth height, long dipperstick
3701.00 mm
Maximum dump height
2566.00 mm
Maximum dump height, long dipperstick
2693.00 mm
Maximum depth of vertical wall which can be excavated
1948.00 mm
Maximum depth of vertical wall which can be excavated, long dipperstick
2115.00 mm
Maximum digging depth
2385.00 mm
Maximum digging depth, long dipperstick
2565.00 mm
Engine
Engine
E19 Mini Excavator
Make / model
Yanmar / 3TNV74-PBC (Stage V)
Number of cylinders
3
